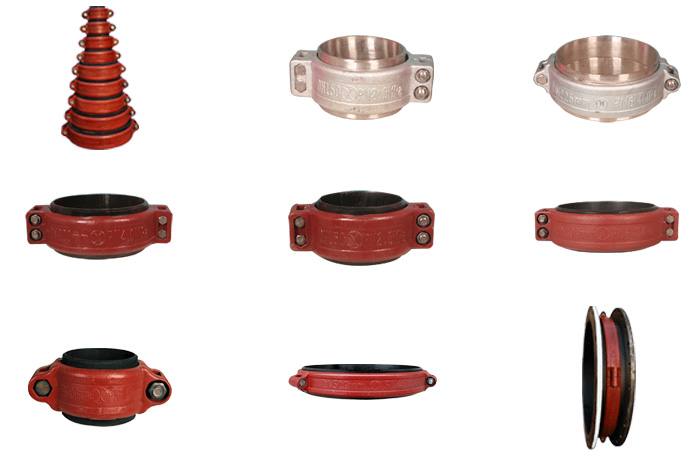

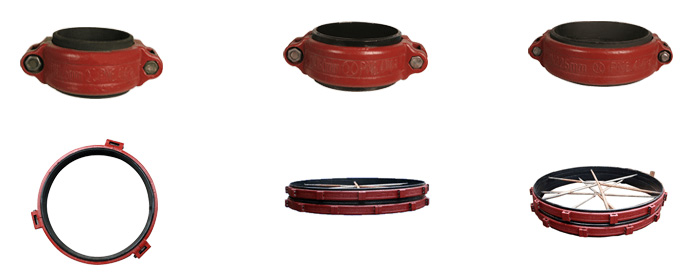

Name: KRHD type steel flexible connector (stainless steel)
Features:
     steel clamp, also known as flexible joints, expansion joints off style, steel flexible pipe joints . Steel is a flexible joint pipe connections, reliable, easy to install products. At low pressure by the elastic deformation ring, to seal the purpose; the pressure increases, the role of the ring through the media, and play the role of self-sealing, and the gap left between the pipe end to compensate for thermal expansion due to the cold pipe reduction resulting from the displacement and deflection.

PN1.6, 2.5,4.0,6.4 MPa of KRHD type flexible joints of the main data table

Diameter over Dw mm Nominal diameter DN mm Allows the pipe end axial line kgf Amount of stretching mm Allows the angle ø Minimum length mm Installation length mm Length mm Equipped with bolt DX L mm 89 80 2680 10 17.90 80 85 90 16 x 50 108 100 3550 10 15.06 90 95 100 16 x 50 133 125 4620 10 13.05 90 95 100 16 x 60 159 150 5530 10 12.09 90 95 100 16 x 60 194 175 7370 10 10.51 90 95 100 16 x 60 219 200 9370 10 9.33 100 105 110 16 x 70 245 225 11750 10 8.36 100 105 110 16 x70 273 250 14620 10 7.51 100 105 110 18 x 70 325 300 20680 12 6.32 100 106 112 18 x 70 377 350 27875 12 5.45 100 106 112 18 x 80 426 400 35600 12 4.80 100 106 112 18 x 80 480 450 45180 12 4.28 100 106 112 18 x 80 530 500 55120 12 3.88 100 106 112 18 x 80 630 600 65900 20 3.27 120 130 140 20 x90 720 700 70170 20 2.86 120 130 140 20 x90 820 800 84400 20 2.51 120 130 140 20 x 90 920 900 106 200 20 2.24 130 140 150 18 x 90 1020 1000 116 870 20 2.02 130 140 150 18 x 90 1220 1200 130 600 20 1.69 130 140 150 18 x 90 1420 1400 146 200 20 1.45 140 150 160 20 x 90 1620 1600 158300 20 1.27 140 150 160 20 x 90 1820 1800 166,000 20 1.13 140 150 160 20 x 90 2020 2000 179 000 25 1.01 145 165 170 20 x 90 2220 2200 187 000 25 1.01 145 165 170 20 x 90 2420 2400 196 000 25 1.01 145 165 170 20 x 90 2620 2600 206 000 25 1.01 145 165 170 20 x 90 2830 2800 253 300 25 1.01 145 165 170 20 x 90 3020 3000 260 100 25 1.01 145 165 170 20 x 90 3220 3200 286 900 25 1.01 145 165 170 20 x 90

Description: Equipped with steel wall thickness provided by the user (for example: ø325 x 8, PN = 6.4MPa a)
